READERS

Hand Readers

Lector Universal II   Lector Gesreader3   Lector Tracking-1   Lector F1
Universal II   Gesreader 3   Tracking-1   Lector F1

Lector ISOMAX V   Lector Xtend Max   Lector Compact-Max   Lector FX-PETII   Lector FX-PETII
ISOMAX V   Xtend Max   Compact-Max   FX-PET II   Omni Max
GESREADER 3

100% water-proof ISO reader.(reading ISO 11784/5, ISO 11784-AMD1 FDX-B y HDX)

User memory available up to 4GB

User-friendly TFT LCD color display with backlight and high-quality integrated loudspeakers

Easy battery recharging through USB cable connected to PC

Available upon request: external Stick antenna

Technical File :

Ref. 800 1070-004

Gesreader3 Accessories (Not included)
external Stick Antenna Gesreader3
Ref. 800 1070-015

Universal Reader II
Lector Universal

The Universal Reader II is a microchip ISO 11784/5 compatible reader with rules ISO 11784/5 capable of reading technologies FDX-B & HDX.

The microchip reader has been specifically designed to endure the farm harsh conditions.

Its wide display screen and ergonomic design ensures the microchip reading and the introduction of data in the reader.

The data introduction system allows introducing data easily such as dates, texts, choose data from a list.

The storage and search of data takes place briefly.

Download Universal Reader II Software

Technical File:

Universal Reader II interchangeable antenna
Ref. EI2061
Universal Reader II with BlueTooth
Ref. EI2062
  Reading Compatibility : ISO 11784/11785. FDX-B y HDX
  Reading Distance :To 35 cm (Depending on the microchips size)
  Battery Charger : 230 VAC, 9V DC 1A
  Data Storage : 512kb of no volatile memory. More than 20000 readings can be stored   depending on the defined fields.
  Connexions : USB 2.0. There is also available a version of the reader with Bluetooth   connexion.
  Power Supplpy : Rechargeable Ni-MH battery 6V/2000 mAh. Approximately 3000   readings.
  Measurements : 325x100x45 mm.
  Weight: 593 g.

Universal Reader II Accessories (Not included)
Antena Corta Lector Universal
Short Antenna
  Measurements : 8,5 cm.
Antena Media Lector Universal
Medium Antenna
Ref. EI2054
  Measurements : 34 cm.
Antena Larga Lector Universal
Long Antenna
Ref. EI2053
  Measurements : 60 cm.
Antena Panel Lector Universal
Panel Antenna
Ref. EI2055
  Measurements : 85x68 cm.
Cargador de coche Lector Universal
Car Charger Device
Ref. EI2028


Impresora BT
BlueTooth Printer
Ref. EI2059




TRACKING-1

A portable livestock reader with great reading performance (30 cm FDX-B / 33 cm HDX)

Extremely light and easy to handle

Big colour screen

Has an internal memory to store 4’000 ID codes

Optional Bluetooth

Technical File :

Ref. 800 1070-050

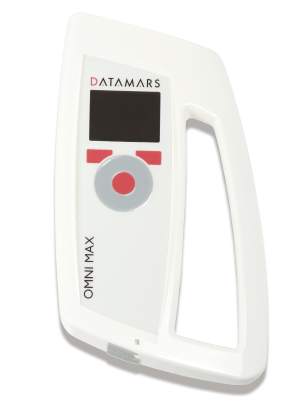

OMNI MAX

OMNI MAX is able to read FDX-B (ISO), FDX-A/FECAVA, Trovan, and either HDX ISO or Avid encrypted, depending on the reader version

Innovative antenna that runs along the full perimeter of the reader

Long lasting, rechargeable, lithium battery

2GB SD internal memory.

Optional Bluetooth

Technical File :

Ref. 800 110-000

Lector F1

This reading device, entirely manufactured in Spain, is supplied with a big and high-contrast screen as well as with an internal memory able to store up to 940 readings.

The F1 reader can read HDX and FDX-B microchips in compliance with the Norm ISO 11784/5. It is the smallest reader on the market capable to support all ISO microchip technologies.

Its smaller size and ergonomic design allows the user to carry it everywhere comfortably.

The reader comes with a highly luminous LED light which lets veterinarian perform examinations of the eye.

The F1 reader comes with a rechargeable Lithium-Ion battery that can be recharged by connecting the USB cable to a USB port on your computer.

The F1 reader also displays the last microchip scanned even if the device has been turned off.

Technical File :

Ref. EI2015

  Dimensions : 107x48x24 mm.
  Weight : 50 g.
  Power Supply : Rechargeable Lithium-Ion Battery.
  White Colour.


ISO MAX V BT

Optimized reading distance and speed with DSP technology

Reading of ISO 11784/5 FDX-B and HDX, backwards compatible with FDX-A/FECAVA, Avid encrypted and Trovan transponde

Graphic LCD with backlight

Fast rechargeable battery (2 hours)

Friendly user interface with improved menu setting

Possibility to record date & time with ID code

With Bluetooth

Technical File :

Ref. 800 1050-101

XTEND MAX

Universal reader, compatible with all FDX-B, ISO-compliant microchips and can also read non-ISO compliant FDX-A microchips (Destron, Avid encrypted and Trovan)

Ideal for scanning aggressive, stressed or feral animals without direct contact

User friendly, backlit graphic color display

Rechargeable battery

Able to transfer data to computer via USB or Bluetooth connection

2GB memory available to store millions of unique identification codes

Technical File :

Ref. 800 1080-003

COMPACT-MAX

Extremely easy to use

Slim and elegant design

Long Lasting, rechargeable, lithium battery

Bright color display

Store up to 4’000 microchip codes

Easily transfer codes to a PC

Technical File :

Ref. 800 1200-000

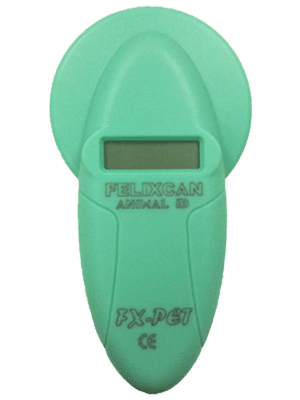

FX-PET II
Lector de microchip para perros

The reader FX-Pet II has been designed in cooperation with veterinarians offering gret performances with very compact dimensions.

The FX-Pet II reader can read FDX-B , FDX-A(Destron, Avid, AEG), Unique and HDX microchips. This reader complies with the ISO 11785 rules.

The shape and size of this reader allows an easy handling for the user. This reader will not frighten the animal away.

Rechargable Li-Ion battery.

This reader can store more than 1000 microchips in its memory to later transmit this information to a computer by means of a USB communication cable (included) or Bluetooth.

This reader can read and write phone numbers in the chip memory compatible with this system. This brand new system allows the vet, the dog owner, police officer, etc… to swiftly backtrack the stray animal and reunite it with its owner.

The possibility of writing/recording phone numbers in a microchip must be considered as a complementary system to the official system in effect in each country. Thus, the microchip number must always be registered in the appropriate national database.

Download FX-PET II Reader Software

Technical File:

Ref. EI2014

    Measurements : 155x80x33 mm.
  Weight : 130 g.
  Power Supply : Li-Ion Battery
  White Colour
